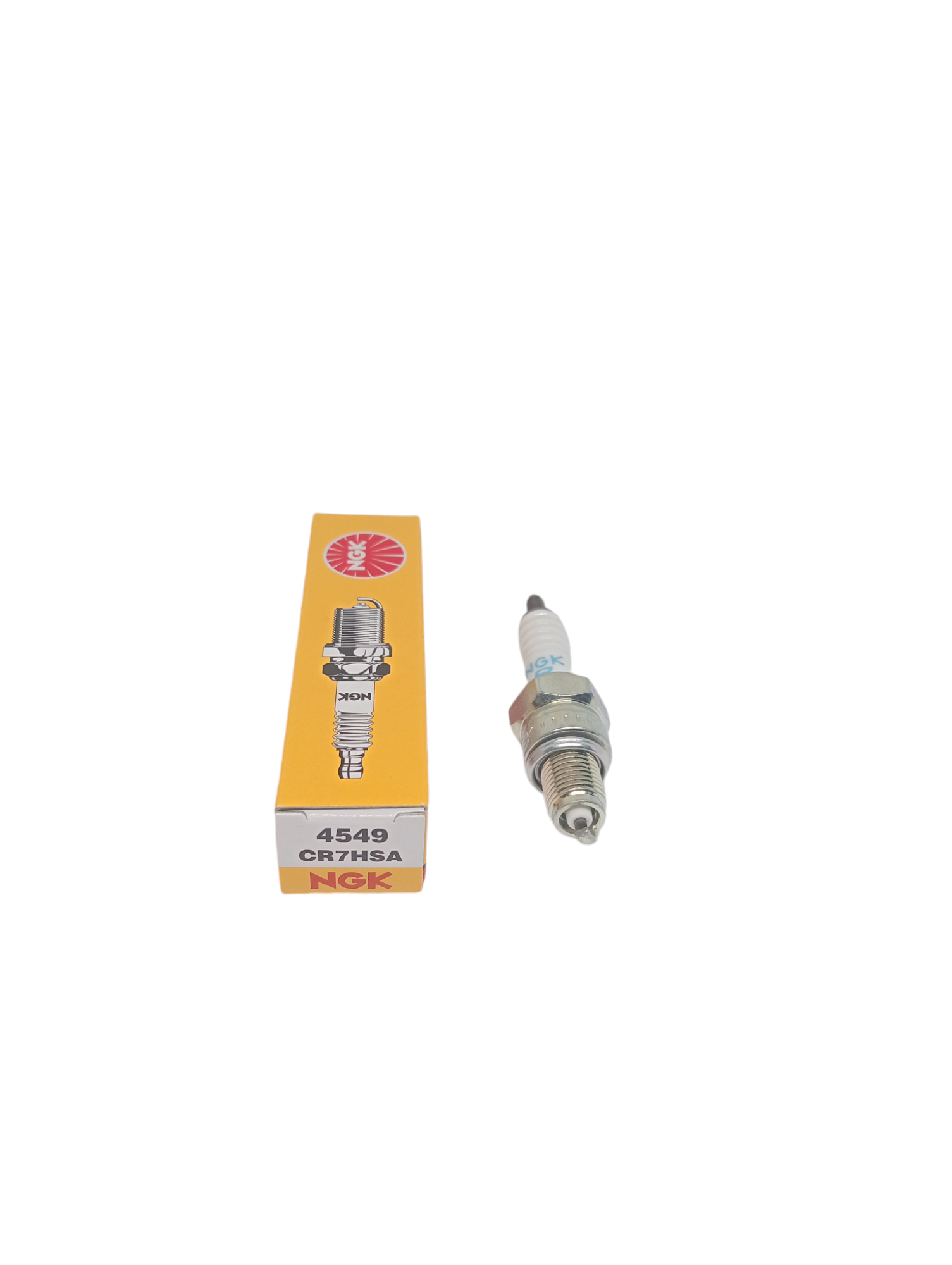

CR7HSA (4549) NGK SPARK PLUG - DIRT BIKE PIT BIKE SCOOTER

With over 80 years of experience, NGK are not just the world largest manufacturer of spark plugs but also at the forefront of modern spark plug technology. Every spark plug in their extensive range has been designed to not just match or exceed the manufacturers specifications but has been tailored to suit the individual engine application. NGK spark plugs have the quality and reliability you can rely on!

SPECS -

Shell

• Thread Size: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 12.7mm (1/2")
• Hex Size: 16mm (5/8")
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: 0.7mm (0.028")

Centre Electrode

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

FITMENT GUIDE -

Used on most dirt bikes and pit bikes. Forza Fmx70 - Fmx140, Forza Fxr155, Fxr170, Pitsterpro Pit Bikes, Xjr70/90, X2 125, X4/X5 140, X4r/X5 160, Lxr160, 4t Warrior 70/110 Atv, 4t 50cc Scooters, Forza Ciclone, Forza Capri, Forza F5, Yamaha, Suzuki, Kawasaki.

Please confirm sizes before purchase to make sure it's the right fit for your application. If unsure, contact our friendly sales team at sales@motorvated.co.nz
